RFID UHF Bolt Lock Seal

RFID UHF Bolt Lock Seal

The UHF-PRO-S1 Security UHF RFID Bolt Seal provides reliable, tamper-evident security for shipping containers, cargo, and logistics operations. Featuring passive UHF RFID technology, a reading range of up to 7 metres, and breaking strength exceeding 10 kN, it enables efficient identification and secure tracking of goods. With IP55 protection and high-security certification, it is ideal for supply chain security and cargo management.

Category:

Description

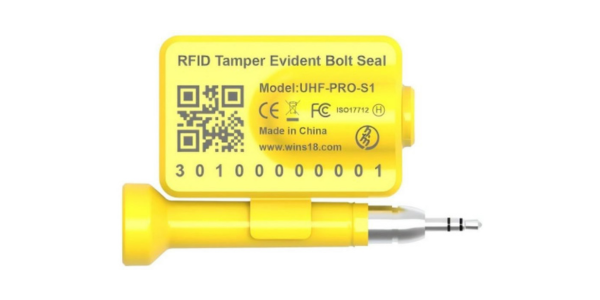

Security UHF RFID Tamper Evident Bolt Seal / UHF-PRO-S1

  • Product size: 63x40x22mm, Bolt length: 5mm, 10mm Diameter
  • Operating Frequency: 902-928MHz – UHF EPC Global
  • RF Protocol: ISO/IEC 18000-6C
  • Technology: Passive
  • Reading Distance: 0-7m (with 12dB antenna power, depending on the operating environment)
  • Quality: 100% performance tested
  • Tamper-Proof Status: Locked/Unlocked
  • Rewritable Cycles: Once
  • Breaking Strength: >10KN
  • Operating temperature: -40°C~+80°C
  • Storage: -40°C~+85°C
  • Carton Dimension: 51*50*39cm (20*19.7*15.4inches)
  • Qty/Carton: 300pcs, Weight: 20kg
  • Certificate: ISO17713:2013 High Security Certificated, CE, FCC
  • IP Protection: IP55
  • HS code: 8523.5290
